Guitar Amp Attenuators Explained

One of the great challenges of tube amplifiers is volume. Many classic guitar tones come from an amplifier being pushed hard, where the power tubes and output stage begin to saturate and respond dynamically to the player. The problem is that those tones often happen at volumes that are simply too loud for smaller venues, studios, churches, or home playing environments.

A guitar amp attenuator solves this problem by reducing the power that reaches the speaker while allowing the amplifier itself to continue operating in its natural range. This allows the player to drive the amplifier harder while controlling the overall volume coming from the cabinet.

However, not all attenuators are created equal.

Many traditional attenuators simply dissipate power using resistive loads. While they do reduce volume, they can also change how the amplifier interacts with the speaker. When the impedance relationship between the amplifier and the speaker changes, the feel and frequency response of the amp can shift as well. Players often describe this as the tone becoming dull, compressed, or less responsive as more attenuation is applied.

The goal of a well-designed attenuator is not just to make the amp quieter, but to preserve the natural interaction between the amplifier and the speaker.

The Emberato 18 Attenuator Design

The Gerlitz Emberato 18 includes a built-in reactive attenuator designed specifically to maintain the feel and response of the amplifier across a wide range of volume levels.

The circuit provides seven selectable levels of attenuation in 3 dB increments, allowing the player to gradually reduce volume from full output down to -21 dB. This gives a wide range of control while still allowing the amplifier to be used in environments where stage volume needs to be managed.

One of the most important aspects of the Emberato 18 attenuator is that it impedance matches the 8 ohm load at every attenuation setting. In practical terms, this means the amplifier continues to “see” the same speaker load regardless of how much attenuation is applied. By maintaining this relationship, the tonal balance and playing feel remain consistent from full volume down to the lowest attenuation setting.

This design allows the amplifier to retain its clarity, dynamics, and harmonic character even when the output level is significantly reduced.

Real-World Use

In real playing situations, this feature becomes extremely useful. A guitarist may dial in the exact tone they want with the amplifier running at full output, and then use the attenuator to bring the volume down without needing to readjust the entire sound.

This is particularly helpful for smaller venues, controlled stages, recording environments, and church settings where front-of-house engineers often need stage volume kept under control. With the Emberato 18 attenuator, the player can keep their preferred tone while simply lowering the final volume level reaching the speaker.

True Bypass Option

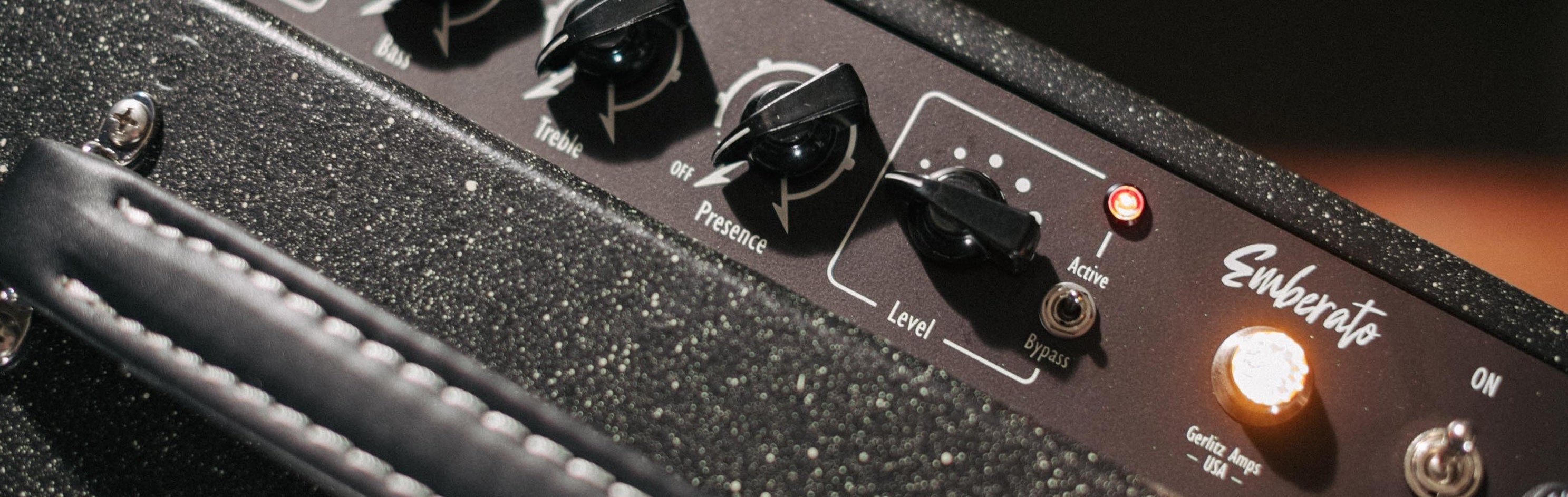

The Emberato 18 also includes a top-panel bypass switch for quick access when full output is desired, as well as a true bypass switch located under the chassis for players who prefer the attenuator to be completely removed from the signal path when not in use.

This gives players the flexibility to run the amplifier fully open when desired, while still having the attenuation system available when volume control is needed.

Designed for Players

The attenuator in the Emberato 18 was designed with a simple goal in mind: allow players to keep the tone they love while adapting to real-world volume requirements.

By combining multiple attenuation levels with proper impedance matching, the Emberato 18 delivers consistent tone, feel, and response whether the amplifier is running wide open or dialed back for quieter environments.
